OpenSYS 150

Video measuring system


Versatile measuring machine for fast and reliable optical measurement on different fields of view.

N°: MA 185-021

Specifications:

  • Granit base.
  • Manual X-Y table MA 145-15,

    Range 150 x 70 mm with clutches.

    Heidenhain measuring scales.

    Mechanical precision 0.003mm / 100mm.

  • Manual precision column, range 150mm.

    Mechanical precision 0.030mm / 100mm.

  • 3 optical choices (see table below).
  • Computer with 27" monitor.
  • LED illuminators.
  • Measuring and comparison software.
  • Glass chromium deposit calibration ruler.
  • Dimensions (WxDxH): 550x440x550mm.
  • Weight: 53kg.

∙∙∙ Click here for more information or to request an offer ∙∙∙

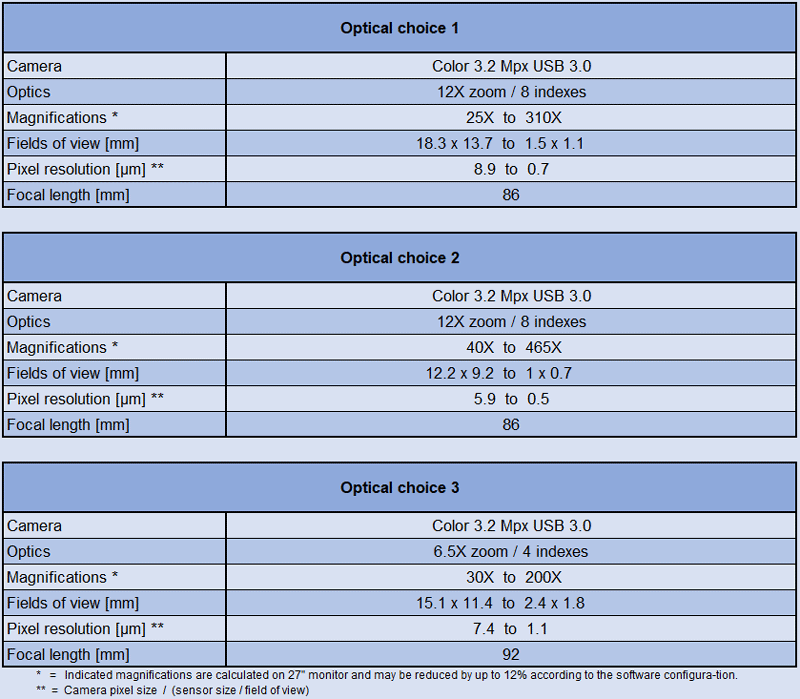

Optical choice 1

adapter 0.67X

OptiVID "zoom 12X"





Optical choice 2

adapter 1.00X

OptiVID "zoom 12X"





Optical choice 3

adapter 0.67X

OptiVID "zoom 6.5X"





Video software

VideoSYMBOL

(requires a calculator)





Video software

VideoPIC

(requires a calculator)





Documentation and measuring software

VideoDOC

(requires a calculator)



Comparison, measuring and

documentation software

VideoRET PLUS

(requires a calculator)





Comparison software, measurement

with machine axis management

VideoPLAN





Measuring software

M3





Digital calculator Mx200

MCA-300-201

(requires a software)





Accessories and options for

150x70mm manual table



Flyer

2D Layout

User's manual (system)

User's manual (optics)

User's Manual (illuminators)
