OptiVID "zoom 6.5X"

Video optics, adapter 0.67X, 90° angle


Video optics are contactless measuring instruments. They allow you to view the edges of a part or to position the part without constraint. Marcel Aubert can offer you an even wider choice than the one represented in the downloadable documents below. A very wide range of software will allow you to adapt the symbols or measuring functions corresponding to your application. Zoom-optics allow you to quickly adapt the field of view to the required precision while guaranteeing a fixed focal length. The angled optics allow quick adaptation to the machine. Various types of fasteners are available as standards.

24" "All In One" monitor (PC included in the screen).

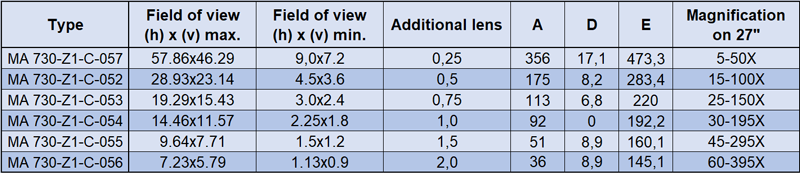

N°: MA 730-Z1-C-05...

Specifications:

  • Great flexibility in the analysis of the image thanks to the wide choice of software.
  • Different interchangeable lenses to choose from.
  • 1.3Mpx USB3.0 color camera.
  • 6.5X zoom-optics (with or without 4 indexes)
  • Available mounts M20x0.75 (in red),

    see options below.

  • Weight 1.5kg.



Comparing, measuring and

documentation software

VideoRET PLUS





Measuring software

VideoMES





Documentation and measuring software

VideoDOC





Video software

VideoPIC





Video software

VideoGEN





Measuring software

VideoDYN





LED incident illuminator

MA 114-033



LED transmitted illuminator

MA 212-92



Geared drive

MA 153-5-027



Adapter ring

85-177



Additional lens

POC-101



Tapered mounts M20x0.75

70-0...



Cylindrical mounts M20x0.75

75-0...
