OptiVID "zoom 6.5X"

Video optics, adapter 1.00X


Video optics are contactless measuring instruments. They allow you to view the edges of a part or to position the part without constraint. Marcel Aubert can offer you an even wider choice than the one represented in the downloadable documents below. A very wide range of software will allow you to adapt the symbols or measuring functions corresponding to your application. Zoom-optics allow you to quickly adapt the field of view to the required precision while guaranteeing a fixed focal length.

24" "All In One" monitor (PC included in the screen)./p>

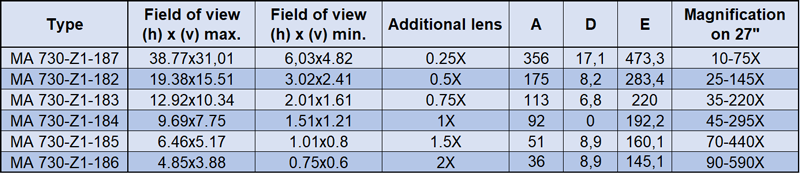

N°: MA 730-Z1-18...

Specifications:

  • Great flexibility in the analysis of the image thanks to the wide choice of software.
  • Different interchangeable lenses to choose from.
  • 1.3Mpx USB3.0 color camera.
  • 6.5X zoom-optics (with or without 4 indexes)
  • Attachment Ø39.7mm.
  • Weight 1.2kg.



Comparing, measuring and

documentation software

VideoRET PLUS





Measuring software

VideoMES





Documentation and measuring software

VideoDOC





Video software

VideoPIC





Video software

VideoGEN





Video software

VideoSYMBOL





Measuring software

VideoDYN





LED incident illuminator

MA 114-033



LED transmitted illuminator

MA 212-92



Geared drive

MA 153-5-027



Adapter ring

85-177



Additional lens

POC-101



Precision column

MA 173-S4



Quick-displacement column

MA 331-S4



Quick-displacement column

MA 333-S4



Positioning 3 axis 50x100mm

MA 159-012-03 / 13



Positioning 3 axis 100x150mm

MA 159-012-07 / 17

Flyer

User's manual

2D layout

3D files (step)
