Quick-displacement column


Column for MA 331 bases, ideal for mounting special devices with microscope or video optics.

N°: MA 331-S...

Specifications:

  • Rack and pinion adjustment ±20mm.

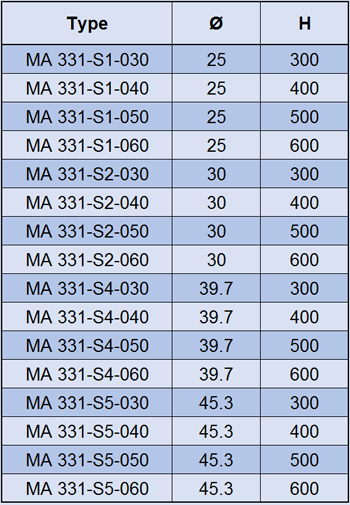

  • Several heights to choose from (see table below).
  • Several attachment Ø to choose from (see table below).
  • Spacing between column and optics 150mm.






∙∙∙ Click here for more information or to request an offer ∙∙∙



Fine moving rack and pinion

MA 154-5...





Positioning flange (only for Ø25)

MA 155-026





Positioning flange (only for Ø30)

MA 155-027





Connecting plate

MA 155-062-21



2D layout

3D file (step)
