Positioning 2 axis 100x150mm

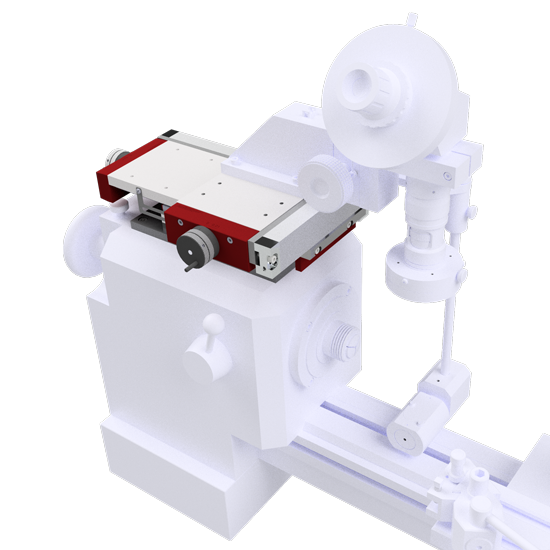

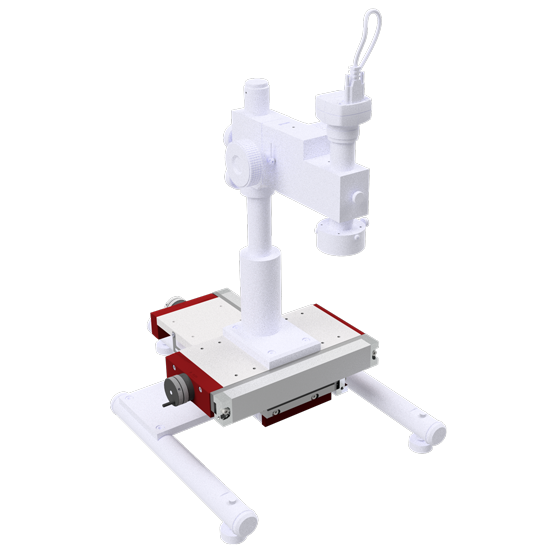

Device used to position an optic or a tool.

N°:
MA 159-008-44 (handle on the right)
MA 159-008-45 (handle on the left)

Specifications:

  • X-axis handle on the left or right.
  • With Heidenhain rulers
    (also available without rulers).
  • Locking screws on each axis.
  • Ball bearing carriages.
  • Weight: 7kg.





∙∙∙ Click here for more information or to request an offer ∙∙∙



Digital display Mx100

MCA-300-101





Digital calculator Mx200

MCA-300-201





Connecting plate for columns MA 331

MA 155-062-21





Bracket

MA 155-062-20





Base 300mm for cylindrical feet

MA 155-062-01





Base 200mm

MA 155-062-03





Handle

MA 155-062-30





LED transmitted illuminator

MA 212-95-041



2D layout

3D file (step)
