Optimum GL 150

Video measuring system

Thanks to its three motorized XYZ axis, this versatile machine allows a systematic control of the parts using the programming of the displacements and this on different visual fields. This enclosed version includes a separate control panel allowing for a personalized location.

N°: MA 185-305


  • Granit base.
  • Manual X-Y table MA 145-15, range 150 x 70mm.

    Mechanical precision 0.003mm / 100mm.

    Heidenhain measuring scales (Display resolution: 0.001mm.

  • Manual precision column, range 140mm.

    Mechanical precision 0.020mm / 100mm.

    Optional Heidenhain measuring scales.

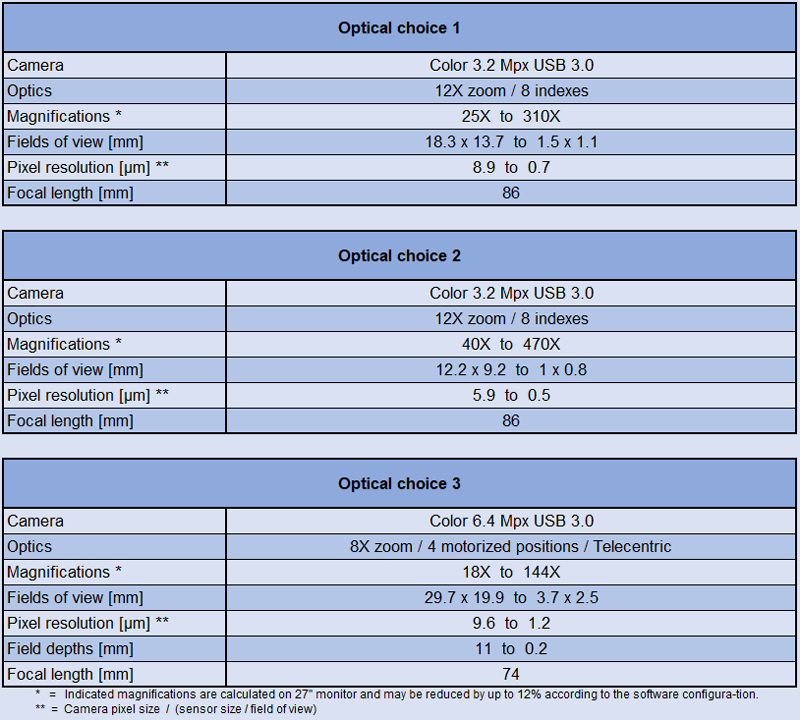

  • 3 optical choices (see table below).
  • 27" screen.
  • LED illuminators.
  • Computer with monitor.
  • Measuring and comparison software.
  • Glass chromium deposit calibration ruler.
  • Dimensions (WxDxH): 520x620x780mm.
  • Weight: 108kg.


Optical choice 1

adapter 0.67X

OptiVID "zoom 12X"



Optical choice 2

adapter 1.00X

OptiVID "zoom 12X"



Optical choice 3

4 lenses on small motorized zoom

OptiVID "telecentric"



Comparison software, measurement

with machine axis management




Measuring software
