OptiVID "high resolution"

Video optics, straight


Video optics are contactless measuring instruments. They allow you to view the edges of a part or to position the part without constraint. Marcel Aubert can offer you an even wider choice than the one represented in the downloadable documents below. A very wide range of software will allow you to adapt the symbols or measuring functions corresponding to your application.

24" "All In One" monitor (PC included in the screen).

N°: MA 730-00...

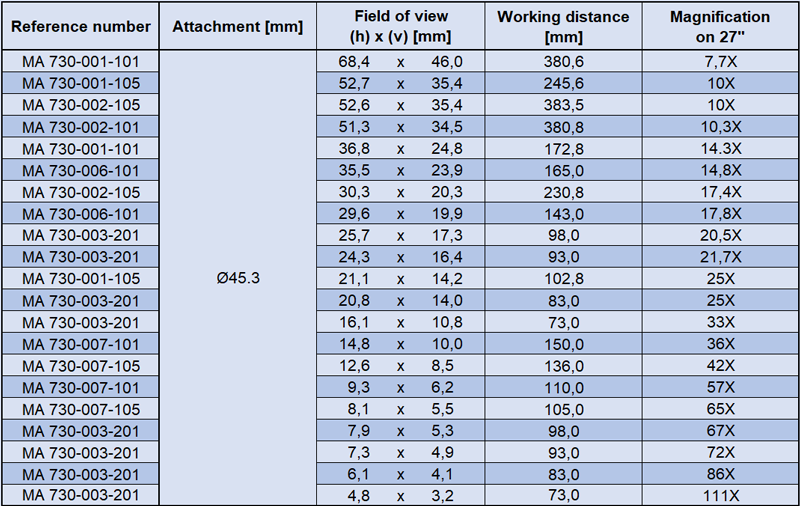

Specifications:

  • Great flexibility in the analysis of the image thanks to the wide choice of software.
  • Different lenses to choose from.
  • 6.4Mpx USB3.0 color camera.
  • Attachment Ø45.3mm.
  • Weight varies between 500 to 750g.


∙∙∙ Click here for more information or to request an offer ∙∙∙



Comparing, measuring and

documentation software

VideoRET PLUS





Measuring software

VideoMES





Documentation and measuring software

VideoDOC





Video software

VideoPIC





Video software

VideoGEN





Video software

VideoSYMBOL





Measuring software

VideoDYN





LED incident illuminator

MA 114-033



LED transmitted illuminator

MA 212-92



Geared drive

MA 153-5-028



Quick-displacement column

MA 333-S5

Flyer

User's manual

MA 730-001-101 (2D layout)

MA 730-001-101 (3D file (step))

MA 730-001-105 (2D layout)

MA 730-001-105 (3D file (step))

MA 730-002-101 (2D layout)

MA 730-002-101 (3D file (step))

MA 730-002-105 (2D layout)

MA 730-002-105 (3D file (step))

MA 730-003-201 (2D layout)

MA 730-003-201 (3D file (step))

MA 730-006-101 (2D layout)

MA 730-006-101 (3D file (step))

MA 730-007-101 (2D layout)

MA 730-007-101 (3D file (step))

MA 730-007-105 (2D layout)

MA 730-007-105 (3D file (step))
